Window Systems
824 Series
The 824 series is a complete line that includes DH, DS, SH, SS and PW. The sleek sightlines and exceptional performance levels (NAFS LC50) make this an extremely versatile window line that can be used in both replacement and new construction as well as impact applications (DP 50 wind zone level 3). In addition, this line incorporates our latest UltraCap technology with options to color cap either interior or exterior surfaces in black or bronze with a 10 year warranty.
Other window series will be presented soon.
- Full Slope Sill with internal drainage for superior water performance (DP 60)
- Exterior Glazed using silicone sealant for maximum structural strength
- Tested for LC 50 with reinforcement only in meeting rails
- 100% recyclable
- Exceeds current ENERGY STAR® requirements
- Integrated lift rail and Interlock
- Achieves egress with 36" x 60" window size
- Dual Weatherstripping at Interlock
- Capable of glazing up to ⅞" dual glass
- C coupler for joining windows with flush design
- Integrated nailing fin Option
- Modular reinforcement channel built in
- Larger visible glass area for optimum solar heat gain
- Colonial design for great aesthetics
- Lock and keeper are hidden from exterior view
- Solid Vinyl Colors: white, black, bronze east coast, bronze west coast
- Dark UltraCap Option for exterior and or interior color solution
Additional Images

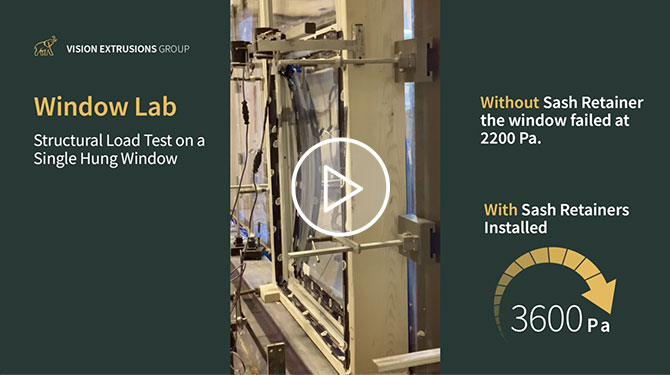

Innovative Sash Retainer for superior air resistance up to 3600 Pa in a window test lab resulting in DP 35 to DP 50.
In practicality, a window with a structural DP rating of 50 has passed a structural test pressure equal to a 200 mph wind.
Take advantage if this opportunity with VISION Extrusions Group.
